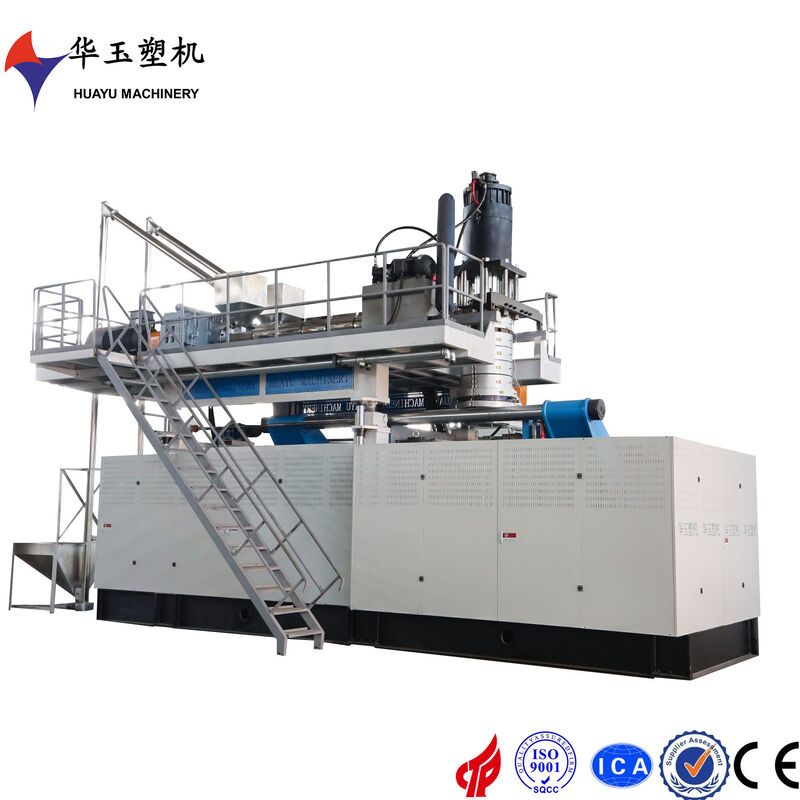

HY200L-1000L 7LAYERS BLOW MOULDING MACHINE with 260kw Average Consumption

HY200L-1000L 7LAYERS BLOW MOULDING MACHINE with 260kw Average Consumption

7layers blow moulding machine 260kw

IBC blow moulding machine with warranty

HY200L-1000L blow moulding machine

Place of Origin:

China

Brand Name:

Huayu

Certification:

CE，ISO9001

Model Number:

HYBM-1007

Chat Now
Request A Quote
HY200L-1000L 7LAYERS BLOW MOULDING MACHINE with 260kw Average Consumption
Product Details
Maxcontainervolume:
200-1000 Liters
Power Supply:
380V/50Hz
Air Seat Stroke:
400mm
Max Parison Diameter:
150-300 Mm
Hopper Materail:
Stainless Steel
Cooling Method:
Circulating Water
After Sales:
OVERSEAS SERVICE
Machine Dimension:
9.5*6.5*8.2m
Applicable Material:
HDPE
Output:
20pcs/h
Voltage:
Pending
Powersupply:
380V, 50Hz, 3 Phase
Parison Control:
MOOG 200point
Goods Capacity:
200L-1000L
Extruder Motor Power:
75kw
Highlight:

7layers blow moulding machine 260kw

,

IBC blow moulding machine with warranty

,

HY200L-1000L blow moulding machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiate
Packaging Details
by container
Delivery Time
5 months
Payment Terms
L/C,T/T
Supply Ability
4 sets per month
RELATED PRODUCTS
Contact Us
86-152-6568-7399
padraic@huayumachine.cn
86-0536-770-9997
Chat Now
Product Description

Capacity range: 200-1000L

Machine dimension : 10.5*5.4*6M

Average consumption: 260kw

Total power: 520kw

Accumulator capacity: 35KG

Extruder motor: 37kw*7

Screw diameter: 80*7MM

Screw L/D ratio: 28:1

Plasticizing capacity: 430KG/H

Platen size: 1500*1700*70MM

Platen distance: 850*2600MM

Clamping force: 800KN

Servo motor: 30kw
