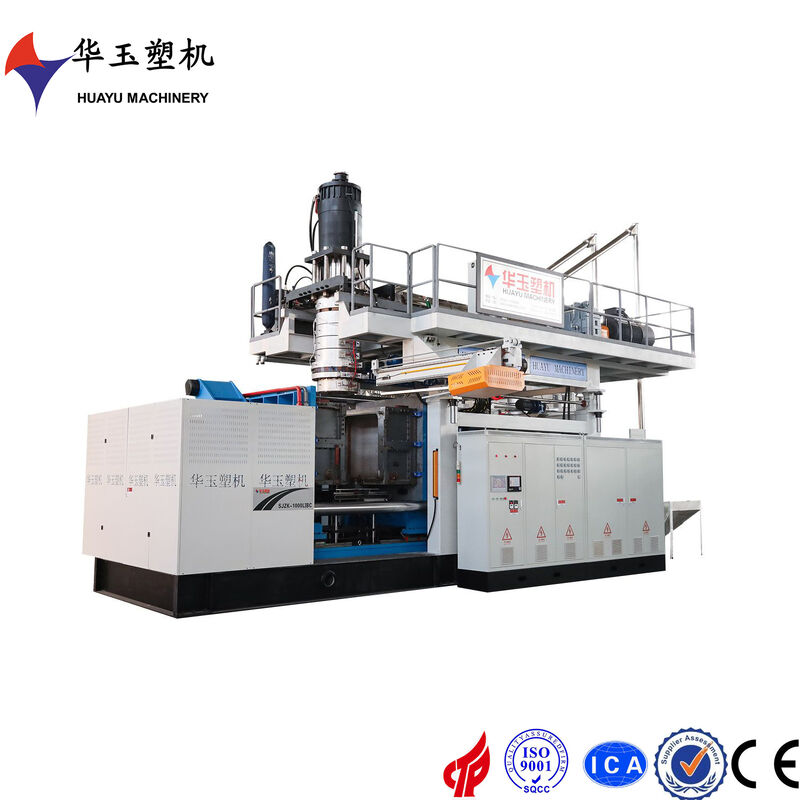

HY200L-1000L High Capacity 8-Layer Blow Moulding Machine with 80*8mm Screw Diameter and 35kg Accumulator

HY200L-1000L High Capacity 8-Layer Blow Moulding Machine with 80*8mm Screw Diameter and 35kg Accumulator

High Capacity IBC Blow Moulding Machine

8-Layer Blow Moulding Machine with Accumulator

80mm Screw Diameter Blow Moulding Machine

Place of Origin:

China

Brand Name:

Huayu

Certification:

CE，ISO9001

Model Number:

HYBM-1008

Chat Now
Request A Quote
HY200L-1000L High Capacity 8-Layer Blow Moulding Machine with 80*8mm Screw Diameter and 35kg Accumulator
Product Details
Applicable Material:
HDPE
Platen:
1700*1800MM
Parison Control:
MOOG 200point
Maxbottlecapacity:
1000 Liters
Screw Diameter:
150mm
Max Parison Diameter:
150-300 Mm
Advantages:
20 Years Experiences
Air Seat Stroke:
400mm
Productioncapacity:
100-500 Bottles Per Hour
Recyclability:
Recyclable
Otal Power:
540kw
Machineweight:
5000 Kg
Application:
IBC
Air Consumption:
1.5m3/min
Highlight:

High Capacity IBC Blow Moulding Machine

,

8-Layer Blow Moulding Machine with Accumulator

,

80mm Screw Diameter Blow Moulding Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiate
Packaging Details
by container
Delivery Time
5 months
Payment Terms
L/C,T/T
Supply Ability
4 sets per month
RELATED PRODUCTS
Contact Us
86-152-6568-7399
padraic@huayumachine.cn
86-0536-770-9997
Chat Now
Product Description

Capacity range: 200-1000L

Machine dimension : 11*5.4*6.2M

Average consumption: 300kw

Total power: 580kw

Accumulator capacity: 35KG

Extruder motor: 37kw*8

Screw diameter: 80MM*8

Screw L/D ratio: 28:1

Plasticizing capacity: 450KG/H

Platen size: 1500*1700*70MM

Platen distance: 850*2600MM

Clamping force: 800KN

Servo motor: 30kw
